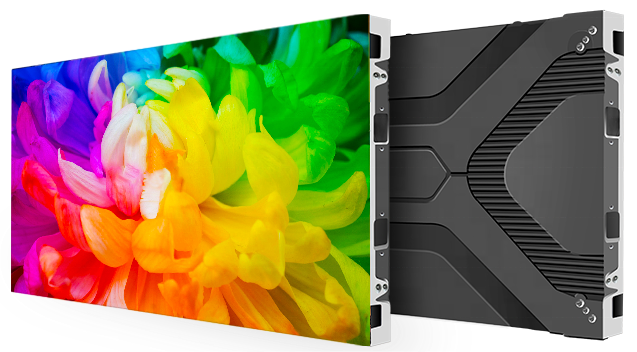

UHDB(16:9) Series
indoor fix with full front service
  • Full front maintenance
  • Real stable and durable
  • Ultra thin and light weight
  • 16:9 golden ratio cabinet deisgn
  • Silence working and high precision
  • GOB technology is available(options)

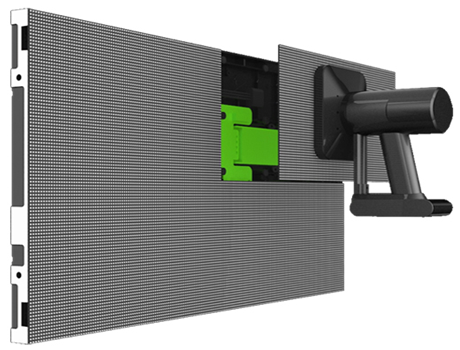

Full front maintenance
  • No need maintenance channel,save cost and space.
  • LED module,PSU,RX Card can maintain in front for engineers.

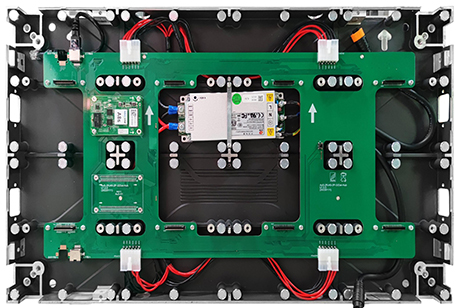

Real stable and durable

Hub card design,no additional power/data cables inside.

Easy install and save troubles,real stable and durable.

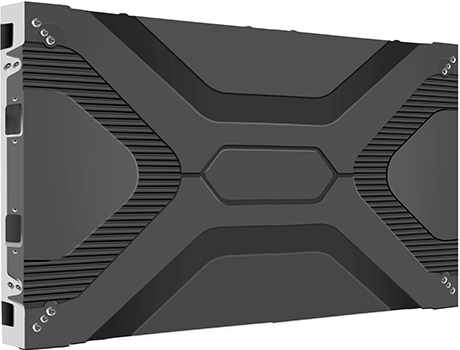

Ultra thin and light weight
  • Only 63mm thickness and 6.5kg/cabinet.
  • Save transportation cost,convenience for installation.

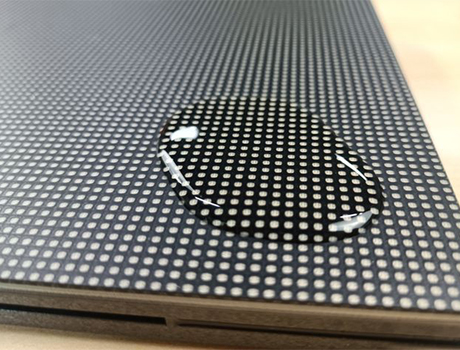

GOB technology is available(options)

Small pixel pitch LED display w/o masking,GOB technology can prevent damage from static electricity and moisture,prolong the LED display’s lifetime.

Parameter
Item UHDB(16:9) Series ( indoor fix installation)
Pixel Pitch P1.25 indoor P1.56 indoor P1.87 indoor
LED per pixel SMD1010 SMD1212 SMD1515
Pixel Density(per sqm) 640000 409600 284444
Module Dimension(WxH) 150x168.75mm 150x168.75mm 150x168.75mm
Module Resolution 120x135 pixels 96x108 pixels 80x90 pixels
Scan Rate 1/45 1/48 1/30
Cabinet Dimension(WxHxD) 600x337.5x63mm 600x337.5x63mm 600x337.5x63mm
Cabinet Resolution 480x270 pixels 384x204 pixels 320x180 pixels
Best View Distancing >1m >1m >1m
Refresh Rate 3840Hz 3840Hz 3840Hz
Viewing Angle(H/V) 160°/140° 160°/140° 160°/140°
Cabinet Material Die-casting Die-casting Die-casting
Maintenance Front Front Front
Single Cabinet Weight 6.5kgs 6.5kgs 6.5kgs
Brightness 600-800nits 600-800nits 600-800nits
Max Power Consumption 600w 600w 600w
Avg Power Consumption 300w 300w 300w
Ingress Protection IP30 IP30 IP30
Lifetime(Hrs) 100,000 100,000 100,000
Working Temperature -20°~+60° -20°~+60° -20°~+60°
Storage Temp/Humidity -40°/60°; 10%-60%RH
