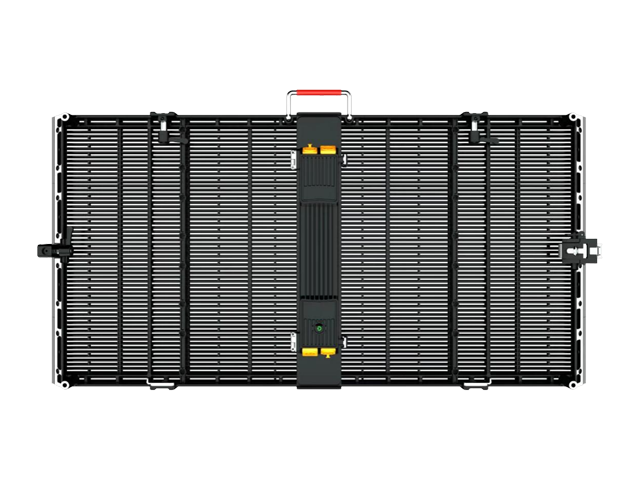

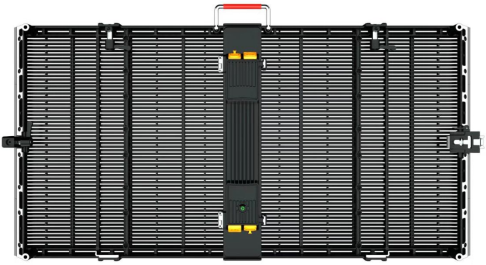

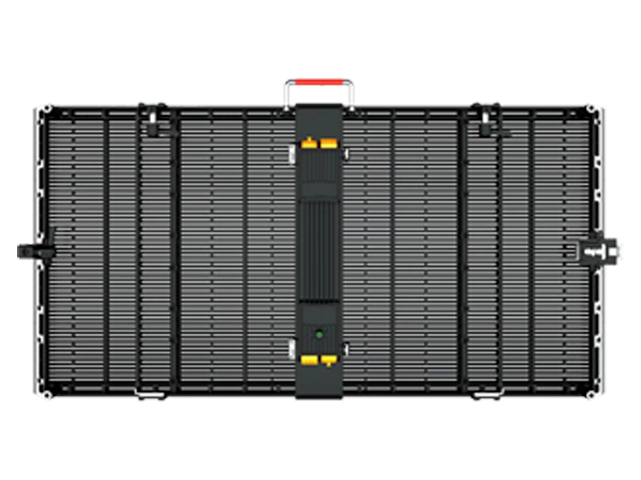

R3 Plus
Magnesium alloy for AV rental
  • Magnesium Alloy frame
  • ONLY 6kg/tile,super light weight
  • Integrated modular design
  • Anti-collision design
Parameter
Item R3 Plus (indoor/outdoor rental)
Pixel Pitch P2.6 indoor P3.9 indoor P3.9 outdoor P4.8 outdoor
LED per pixel SMD1515 SMD2121 SMD1921 SMD1921
Pixel Density(per sqm) 147456 65536 65536 43264
Module Dimension(WxH) 250x250mm 250x250mm 250x250mm 250x250mm
Module Resolution 96x96 pixels 64x64 pixels 64x64 pixels 52x52 pixels
Scan Rate 1/24 1/16 1/16 1/13
Cabinet Dimension(WxHxD) 500x500x74mm 500x500x74mm 500x500x74mm 500x500x74mm
Cabinet Resolution(500mm) 192x192 pixels 128x128 pixels 128x128 pixels 104x104 pixels
Best View Distancing >2m >3m >3m >4m
Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz
Viewing Angle(H/V) 160°/140° 160°/140° 160°/140° 160°/140°
Cabinet Material Magnesium alloy Magnesium alloy Magnesium alloy Magnesium alloy
Curve(options) +/-3/6° +/-3/6° +/-3/6° +/-3/6°
Maintenance Front/Rear Front/Rear Rear Rear
Single Cabinet Weight 6kgs 6kgs 6.5kgs 6.5kgs
Brightness 800-1200nits 800-1200nits 3500-4500nits 3500-4500nits
Max Power Consumption 480w 480w 700w 700w
Avg Power Consumption 240w 240w 350w 350w
Ingress Protection IP30 IP30 IP65(F) / IP54(R) IP65(F) / IP54(R)
Lifetime(Hrs) 100,000 100,000 100,000 100,000
Working Temperature -20°~+60° -20°~+60° -20°~+60° -20°~+60°
Storage Temp/Humidity -40°/60°; 10%-60%RH
Download & Video

  • To ensure you can find the right solution for your projects,pls download the detail product information to know more.

    if you haven't find what you are looking for,pls contact with our team via sales@strongertek.com.



Specification Download
