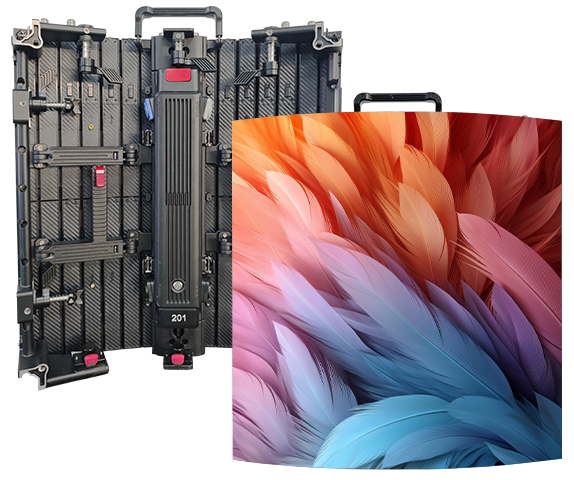

BLX Series
new generation in 2024
  • T locker with Gear, Double safe
  • Real hard connection, Zero cable inside
  • 4 Layer PCB Board
  • Super Thrust Force

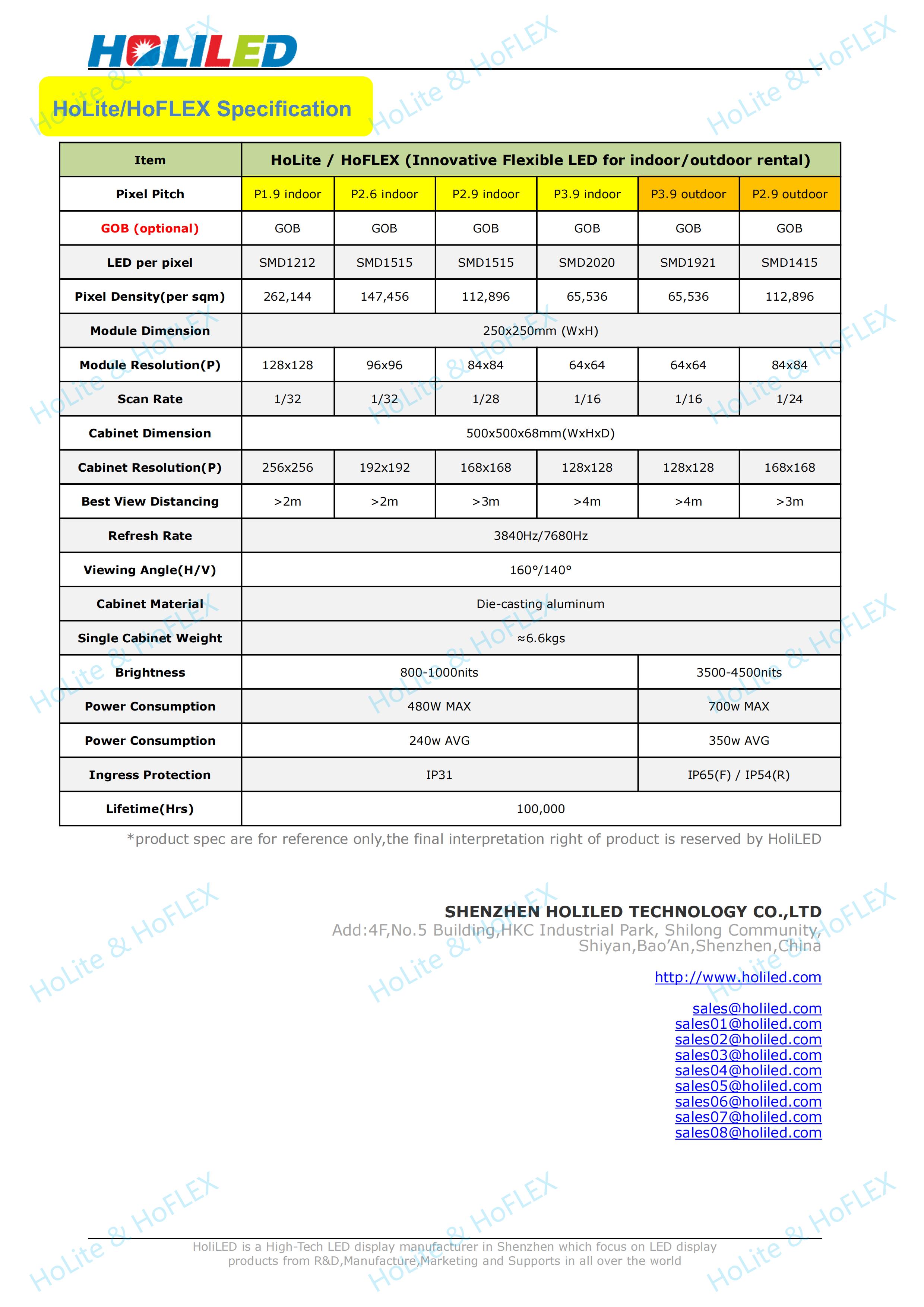

Parameter
Pixel Pitch P1.95 indoor P2.6 indoor P2.9 indoor P3.9 indoor P3.9 outdoor P4.8 outdoor
LED per pixel SMD1212 SMD1515 SMD2020 SMD2020 SMD1921 SMD2121
Pixel Density
(per sqm)
262,144 147,456 112,896 65,536 65,536 43264
Module Dimension
(WxH)
250x250mm 250x250mm 250x250mm 250x250mm 250x250mm 250x250mm
Module Resolution 256x256 pixels 96x96 pixels 84x84 pixels 64x64 pixels 64x64 pixels 52x52 pixels
Scan Rate 1/32 1/24 1/21 1/16 1/16 1/13
Cabinet Dimension
(WxHxD)
500x500x65mm 500x500x65mm 500x500x65mm 500x500x65mm 500x500x70mm 500x500x70mm
Cabinet Resolution 512x512 pixels 192x192 pixels 168x168 pixels 128x128 pixels 128x128 pixles 104x104 pixels
Best View Distancing >1m >2m >2m >3m >3m >4m
Refresh Rate 3840Hz/7680Hz 3840Hz/7680Hz 3840Hz/7680Hz 3840Hz/7680Hz 3840Hz/7680Hz 3840Hz/7680Hz
Viewing Angle(H/V) 160°/140° 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
Cabinet Material Die-casting
Aluminium
Die-casting
Aluminium
Die-casting
Aluminium
Die-casting
Aluminium
Die-casting
Aluminium
Die-casting
Aluminium
Curve(optional) ±3°,±6°,0° ±3°,±6°,0° ±3°,±6°,0° ±3°,±6°,0° ±3°,±6°,0° ±3°,±6°,0°
Maintenance Front/Rear Front/Rear Front/Rear Front/Rear Rear Rear
Single Cabinet Weight 6.5±0.5kg 6.5±0.5kg 6.5±0.5kg 6.5±0.5kg 6.7±0.5kg 6.7±0.5kg
Brightness 600-800nits 1000-1200nits 1000-1200nits 1000-1200nits 4000-4500nits 4000-4500nits
Power Consumption
(Max/sqm)
560w 560w 560w 560w 700w 700w
Power Consumption
(Avg/sqm)
280w 280w 280w 280w 350w 350w
Ingress Protection IP30 IP30 IP30 IP30 IP65(F)/IP54(R) IP65(F)/IP54(R)
Lifetime(Hrs) 100,000 100,000 100,000 100,000 100,000 100,000

Download and Video
  • To ensure you can find the right solution for your projects,pls download the detail product information to know more.

    if you haven't find what you are looking for,pls contact with our team via sales@holiled.com.

Specification Download
